If your motorhome breaker trips “for no reason,” the cause often sits in plain sight. The coach has power, the pedestal looks fine, and the microwave worked yesterday. Then you start the A/C and the lights flicker. Or the water heater kicks on and the main breaker pops.
In many Houston service calls, I find the same pattern. The rig has enough power on paper, but the loads stack on one side of the panel. That imbalance creates heat, voltage drop, nuisance trips, and early failure in parts that should last much longer.
This guide explains RV electrical load balancing in clear terms. You will learn what “balanced” means in a motorhome, what imbalance does to your system, and what safe steps help you prevent repeat problems.
What “load balancing” means in a motorhome
RV load balancing means you spread your 120V appliances across the available circuits so no single leg or circuit carries more than it should.
The concept changes based on your shore power type:
- 30-amp service gives you one 120V hot leg. You cannot “balance legs” because there is only one leg. You manage total load.
- 50-amp service gives you two 120V hot legs (often labeled L1 and L2) that feed your breaker panel. You can distribute big loads across both legs.
Most Class A coaches run 50A service. Many Class C units run 30A, though some newer Class C rigs use 50A.
Load balancing matters because it reduces stress on wiring, breakers, and high-draw appliances. It also reduces voltage sag that can damage motors and control boards.
Why load imbalance causes failures
An imbalance does not always trip a breaker right away. It often causes “slow damage,” which shows up later as:
- repeated breaker trips
- melted plugs or scorched receptacles
- hot neutral connections
- failing A/C capacitors or control boards
- inverter or transfer switch faults
- random shutdowns on appliances that “worked fine” yesterday
Here is the core issue in simple terms:
When too many high-draw appliances sit on one leg or one circuit, the current rises and the voltage drops. Heat rises at connections. Breakers trip, or parts degrade.
This is why RV power distribution issues look “random.” The failure depends on what turns on at the same time.

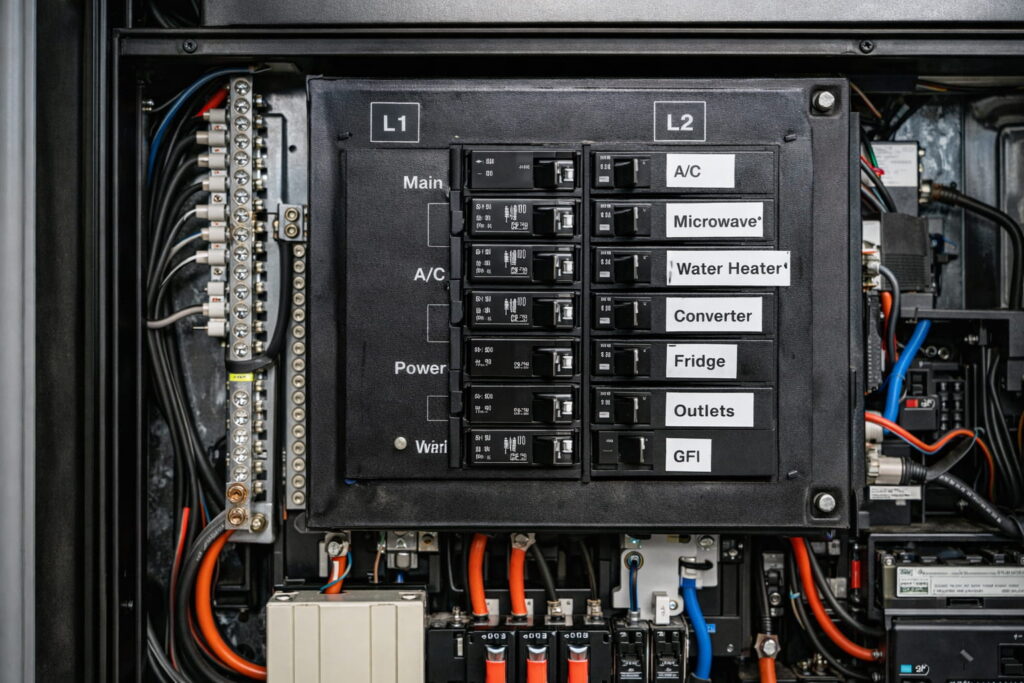

50-amp motorhomes: the two-leg reality most owners miss
A 50A RV service is not “50 amps total.” It is two separate 50A, 120V legs. That is why people say “up to 12,000 watts.” In real use, the coach runs many 120V loads split across both legs.
A balanced 50A panel means:
- Leg 1 carries a similar load to Leg 2 during heavy use
- High-draw loads do not cluster on one leg
- The neutral carries less “difference current” because the legs share the work
When I open panels on Class A rigs with repeat trips, I often see both A/C units, the microwave, and the electric water heater landing on the same leg. That layout works until summer heat hits, or until you add one more load like a space heater or coffee maker.
30-amp motorhomes: balancing means staging loads
A 30A system gives you about 3,600 watts (30 amps × 120 volts). That sounds fine until you run:
- A/C
- microwave
- electric water heater
- hair dryer
- portable space heater
On 30A service, the fix is not “move breakers to the other leg.” The fix is smarter scheduling:
- Run A/C first, then microwave after the compressor cycles off
- Use propane mode for the water heater and fridge when possible
- Avoid stacking heat appliances (space heater + water heater + toaster)
This is where most RV breaker tripping causes show up: owners run two heat sources plus one motor load, and the panel does what it should do. It trips to protect the wiring.
High-draw loads that usually create motorhome electrical overload
These items cause most overload events in the field:
- rooftop A/C units (especially at startup)
- electric water heater element
- microwave or convection oven
- portable space heater
- hair dryer
- induction cooktop
- residential fridge (in some setups, especially through an inverter)
- battery charger or inverter-charger in bulk charge mode
A key detail: many motor loads draw a short spike at startup (locked-rotor amps). That spike can trip a breaker even if the “running amps” look safe.
The 80% rule that keeps breakers and wiring cooler
A practical rule used in electrical planning is the “80% rule” for continuous loads. If a load runs for long periods (often defined as 3 hours or more), you avoid running it near the breaker’s full rating.
In RV life, this matters because A/C, portable heaters, and battery charging can run for long stretches. When you run near the limit, heat builds in breakers, plugs, and connections. Heat creates resistance. Resistance creates more heat. This cycle ends in failure.
If you want a code-based overview of RV park power equipment and safety rules that influence what you receive at the pedestal, read a plain-language NEC Article 551 summary like this breakdown of Article 551 receptacle requirements at RV parks on Leviton’s Captain Code site: NEC Article 551 RV park receptacle requirements.
Symptoms that point to load imbalance
Owners describe these common signs:
- one A/C runs fine, but the second A/C trips the main breaker
- microwave use causes lights to dim or A/C to surge
- breaker trips happen most often at certain parks
- outlets or the shore cord plug feel warm
- inverter shows low-voltage alarms even with shore power connected
- you smell “hot plastic” near the power inlet or transfer switch
These are not small annoyances. Heat damage at the shore inlet or transfer switch can become a fire risk. If you see scorch marks, stop using that connection until a tech inspects it.
If you suspect deeper wiring or distribution faults, start with a professional diagnosis through a shop that handles motorhome electrical systems daily. TX RV Repair Shop includes electrical fault isolation and safe testing as part of its service workflow, which you can see on the RV electrical repair service page.
A safe, owner-friendly way to check for imbalance
You can do a lot without opening a breaker panel.
Safe checks you can do:
- Use an RV energy management display if your coach has one.
- Use a pedestal surge protector with voltage and amp readouts.
- Track what is running when the trip happens.
If you have a 50A coach and a monitor that shows L1 and L2 amps, look for big differences during normal use. A wide gap suggests you have an imbalance, or you have one leg carrying most high-draw loads.
If you do not have leg-by-leg monitoring, consider adding a power management display or an EMS that shows current draw. That single tool prevents many repeat failures because you can see the problem before the breaker trips.
How to balance loads in real life without rewiring anything
Even if your panel layout is not perfect, you can reduce overload risk fast.
Use these habits:
- Run the microwave only when the A/C compressor is off.
- Switch the water heater to propane during heavy A/C use.
- Avoid running a space heater and the electric water heater together.
- Charge high-draw devices (hair dryer, induction cooktop) in short bursts, not long runs.
- If you use an inverter for outlets, avoid running large AC appliances through it unless the system is designed for that load.
This approach reduces motorhome electrical overload events right away.
When a panel change or circuit move makes sense
Sometimes habits are not enough. If your rig always overloads on one leg during normal use, the coach may have poor factory distribution or years of add-ons that changed the load map.
Examples I see in the field:
- a second A/C was installed but landed on the same leg as the first
- a residential fridge inverter circuit was added without load planning
- a water heater element was upgraded and now draws more than expected
- a prior repair used the “closest breaker slot” instead of the best distribution
This is where a qualified RV electrical tech can map the loads and recommend changes. In some cases, moving a breaker to the opposite bus position helps. In other cases, the panel already alternates legs and the real issue sits elsewhere, like a weak pedestal leg, a failing transfer switch, or a loose neutral.
If you want a structured way to isolate those problems, use a step-by-step troubleshooting process like the one in this internal guide: Electrical problems in RVs: a troubleshooting guide.
Soft-start kits and why they matter for A/C load management
A/C startup surge is one of the top triggers for breaker trips, especially when voltage at the pedestal is already low.
A soft-start reduces the startup spike. That helps in three ways:
- the A/C starts more reliably on marginal power
- the peak current drops, which reduces nuisance trips
- the coach sees less voltage sag during compressor start
Soft-starts do not “create power,” but they reduce the moment that causes many trips.
Many owners focus only on amps. Voltage matters just as much.
Low voltage causes higher current draw for some appliances, and it can damage motors and compressors. Low voltage often comes from:
- long runs in the park wiring
- hot or loose pedestal connections
- undersized extension cords
- worn shore cords or damaged plugs
- corroded power inlets
- weak neutral connections
If your voltage drops hard when the A/C starts, reduce loads and consider moving to a better pedestal. If the pedestal is the issue, you can document it and ask the park to address it.
What RVIA guidance can help you trust your baseline
Many owners ask, “What standard should my RV follow?”
The RV Industry Association sets certification requirements tied to nationally recognized safety standards for RV construction, including electrical systems. A good starting point for understanding how RV construction and safety compliance works is the RV Industry Association’s overview of RV standards and compliance: RV Industry Association standards and regulations.
That page is not a troubleshooting manual, but it helps you understand why certified RVs follow defined safety requirements and why improper modifications can create risk.
A practical load-balancing routine for travel days
Use this routine when you arrive at a new park:
- Plug in with a quality surge protector or EMS.
- Confirm voltage before you turn on heavy loads.
- Start one large load at a time.
- Wait two minutes between major loads (A/C, water heater, microwave).
- If you trip a breaker, turn off all big loads before resetting.
This routine prevents the “all-on at once” spike that causes trips and heat damage.
When to stop and call a professional
Call a tech soon if you see any of these:
- hot shore cord plug blades
- melted power inlet housing
- burned smell near the transfer switch
- repeated main breaker trips on multiple pedestals
- visible arcing marks in the panel
- GFCI that will not reset
- inverter faulting only on shore power
These signs point to connection failure, neutral issues, or distribution faults that need safe testing under load.
What to Remember About RV Electrical Load Balancing
Electrical problems feel frustrating because they interrupt comfort fast. But the fix usually follows a clear pattern.
Load balancing works because it reduces stress:
- less heat at connections
- fewer nuisance trips
- steadier voltage for appliances
- longer life for A/C units, chargers, and control boards
If you want the short version, remember this:
Balance what you can. Stage what you cannot. Watch voltage. Respect heat.
