RV trips should feel smooth and safe. Fuel system problems can ruin a trip fast. This guide gives you a clear plan to diagnose, fix, and prevent the most common fuel issues. We focus on the fuel pump, fuel filters, clogs, and bad mileage.
We serve Houston RV owners who face heat, stop-and-go traffic, and long storage cycles. Our team at TX RV Repair brings years of shop experience on gas and diesel rigs. We use factory procedures, real test data, and hands-on results.
Why Fuel System Health Matters
Your engine needs the right amount of clean fuel at the right pressure. If pressure drops, the engine runs lean. If injectors stick, the engine runs rich or misfires. If lines leak, you lose fuel and face a fire risk.
Good fuel flow means safe merges, steady climbs, and better fuel economy. Strong fuel delivery also protects expensive parts like catalytic converters, turbos, and high-pressure pumps.
Quick Safety First
- Turn off the engine and remove the key.
- Relieve fuel pressure before opening any line.
- Disconnect the negative battery cable.
- Work in a ventilated area. No sparks. No smoking.
- Keep a Class B fire extinguisher nearby.
- Wear eye protection and fuel-rated gloves.
These steps protect you, your coach, and the shop.
How an RV Fuel System Works (Gas vs. Diesel)
Gasoline systems
- In-tank electric pump sends fuel through a primary filter.
- Fuel travels in supply lines to a fuel rail.
- Injectors meter fuel into each cylinder.
- A regulator and sensor maintain pressure.
- Many modern chassis use returnless systems with a module in the tank.
Diesel systems
- A lift pump feeds fuel through a water separator and filter.
- A high-pressure pump builds rail pressure for common-rail injectors.
- Return lines carry excess fuel back to the tank.
- Water and air in the system cause stalling and damage.
Sensors that affect fuel delivery
- Mass Air Flow (MAF)
- Manifold Absolute Pressure (MAP)
- Oxygen sensors (gas)
- Fuel pressure sensor and rail pressure sensor (diesel)
Houston notes: Heat raises vapor pressure. Ethanol blends absorb water during storage. Both raise your risk of hot-restart problems and corrosion.
Symptom Map: What You Feel vs. Likely Cause
Hard start / long crank
- Fuel pressure bleeds down, weak pump, leaking injector, low battery voltage.
Stall at idle or on hills
- RV fuel filter clogged, failing pump, tank vent blocked, bad gas in RV.
Surge or buck under load
- Low fuel pressure, restricted filter, dirty MAF, intake leak (gas).
RV poor fuel mileage
- Under-inflated tires, dragging brakes, dirty air filter, lazy O2 sensor, injector deposits, low pressure.
Whine from fuel tank
- Pump overheats from low fuel level or restriction.
Fuel smell or wet spots
- RV fuel line leak, cracked hose, loose quick-connect, tank seam leak.
Black smoke (diesel)
- Over-fueling from clogged air filter or faulty injector; low boost can mimic this.
Check-engine code for lean mix
- Low pressure, intake leaks, MAF error, or EVAP issue.
Use this map to choose the right test next.

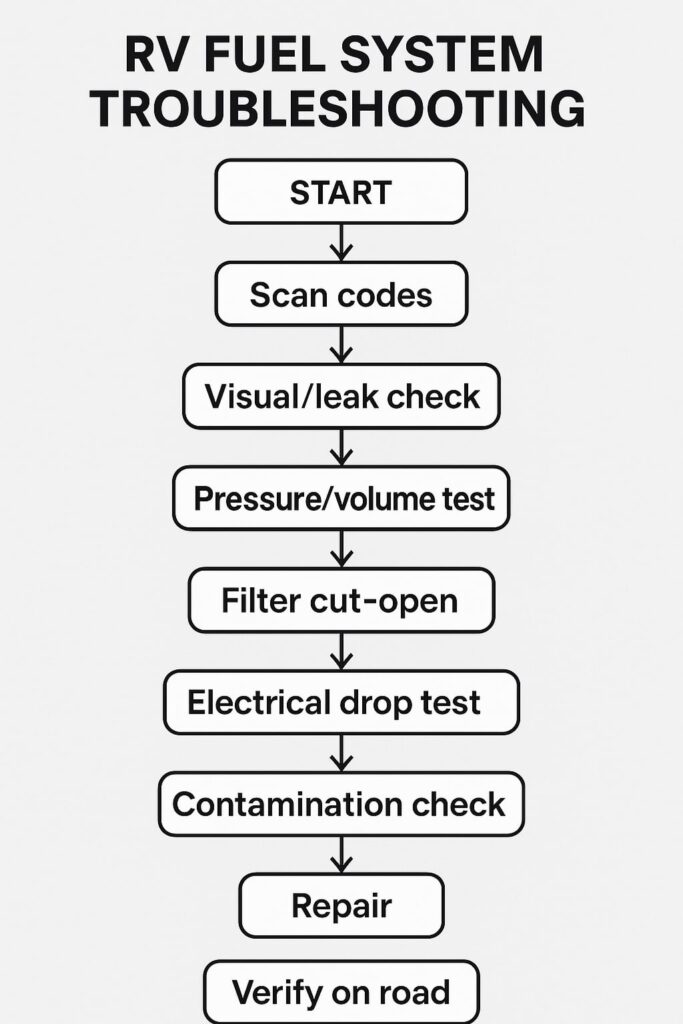

Step-By-Step Troubleshooting Flow
Step 1: Fast checks (5–10 minutes)
- Ask about the last fill-up, storage time, and ethanol content.
- Read OBD-II codes and freeze frames. Watch fuel trims and misfire counters.
- Inspect for leaks, cracked hoses, and a damaged gas cap seal.
- Check air filter and tire pressure.
- Test battery voltage during crank (target ≥10.5V).
Step 2: Fuel pressure and volume
- Gas: Attach a rail gauge. Record key-on prime, idle, and a snap-throttle reading. Compare to spec.
- Diesel: Verify lift-pump output and vacuum at the filter head. Look for air in a clear line.
- If pressure seems fine but power is low, run a volume test with a catch can for 10 seconds and extrapolate.
Step 3: Restriction and venting
- Replace the primary fuel filter. Cut the old one open and inspect media for rust, rubber, algae, or varnish.
- Inspect the tank pick-up sock for debris.
- Open the cap after a drive. A large vacuum whoosh suggests a blocked tank vent or EVAP fault.
- Check for kinked lines near frame rails or generator tees.
Step 4: Electrical health for pumps
- Back-probe the pump connector. Measure voltage drop on power and ground under load.
- Inspect the relay, fuse, inertia switch (common on Ford-based Class C), and grounds.
- Heat-soak test: let the RV idle for 20 minutes in Houston heat, then confirm the pump still makes spec pressure.
Step 5: Injector condition
- Gas: Look at short- and long-term fuel trims. Run an injector balance test if your tool supports it.
- Diesel: Perform an injector return rate test to find an outlier. Check rail pressure during cranking.
Common Issues and Straightforward Fixes
1) RV fuel pump failure
Signs: Long crank, stall under load, loud pump whine, low rail pressure.
Fix: Replace the in-tank module. Install a new strainer and seal. Clean connectors. Verify power and ground.
Prevent: Keep fuel level above 1/4 in summer to cool the pump. Replace aged filters on time.
2) RV fuel filter clogged
Signs: Loss of power, lean codes, pump noise, surging on hills.
Fix: Replace filters (gas and diesel). On diesel, prime the system and bleed air at the filter head.
Pro tip: If the cut-open filter shows rust, plan a tank clean and new lines as needed.
3) Dirty or sticking injectors
Signs: Rough idle, light-throttle misfire, poor mileage, high long-term trims; diesel haze.
Fix: Professional on-rail cleaning or ultrasonic service. Replace upper and lower seals.
Prevent: Use quality fuel. Add a detergent additive at storage changeovers per chassis guidance.
4) Bad gas in RV (water, algae, varnish)
Signs: Stalls after refuel, filter full of rust or slime, water in diesel separator.
Fix: Drain and flush the tank. Replace filters. Treat diesel with an approved biocide.
Prevent: Buy from high-turnover stations. Use stabilizer before storage. Run the generator monthly.
5) RV fuel line leak
Signs: Fuel odor, wet frame rails, visible drips, poor pressure.
Fix: Replace soft lines with ethanol-rated hose. Renew quick-connect clips and O-rings. Torque clamps to spec.
Safety: Do not drive with an active leak. Tow in.
6) Hot-restart stumble (vapor lock / heat soak)
Signs: Hard restart after a short stop on a hot day.
Fix: Check fan operation. Insulate lines near exhaust. Verify returnless module performance and purge flow.
Prevent: Keep ethanol content consistent. Avoid long idles with low fuel.
7) Diesel RV fuel system problems
Air intrusion: Micro bubbles cause shudder and stall. Reseat filter head O-rings and quick-connects.
High-pressure pump wear: Metal in filter media. Stop driving. Tow in for inspection.
Low power with smoke: Rule out a plugged air filter, boost leaks, and sticky EGR before condemning injectors.
Bad Mileage: A Simple Baseline Plan
- Tires: Set to axle weight and chart values.
- Brakes: Check for dragging calipers and parking brake bind.
- Air filter: Replace if dirty.
- MAF/O2 health (gas): Clean MAF with proper cleaner. Check O2 switching at cruise.
- Fuel pressure: Verify at idle and under load.
- Alignment and weight: Scale the coach. Balance load. Remove roof drag items when not needed.
Track trip MPG. A drop of 10% or more calls for tests.
DIY vs. Professional: Make the Right Call
DIY-friendly
- Replace air and fuel filters on accessible chassis.
- Clean MAF and throttle body (gas).
- Add a quality fuel system cleaner per spec.
- Inspect lines and clamps.
- Use a rail pressure gauge and a basic scan tool.
Professional only
- In-tank pump replacement.
- Diesel high-pressure work and injector coding.
- Fuel line fabrication and tank removal.
- EVAP leak diagnosis with smoke machine.
- Any repair with active leaks or fire risk.
Tow now if: You see raw fuel dripping, you smell strong fuel in the cabin, rail pressure is far below spec, the diesel shows metal in the filter, or the engine stalls in traffic.
Preventive Maintenance Plan for Houston RV Owners
- Fuel filter: Every 15k–20k miles on gas or per chassis spec on diesel. Shorten the interval after long storage.
- Stabilizer: Add before storage. Fill the tank to reduce condensation.
- Generator: Run monthly under load to keep fuel fresh in the carb/lines.
- Lines and seals: Inspect annually. Ethanol hardens old hoses. Replace any seeping connections.
- Tank level: Keep ≥1/2 in summer to reduce heat soak and prevent pump starvation.
- Water separator (diesel): Drain on schedule and after heavy rain/humidity weeks.
- Scan and pressure check: Do a pre-trip check before long hauls out of Houston.
Tools and Supplies Checklist
- OBD-II scanner with live data.
- Fuel pressure gauge set with the correct adapters.
- Multimeter and amp clamp.
- Noid light or injector test kit.
- Replacement filters, O-rings, quick-connect clips.
- Catch pan, approved fuel containers, shop rags.
- PPE and Class B fire extinguisher.
Case Notes from the TX RV Repair Shop
Case 1: Class C stalls on I-45
A family coach stalled during uphill merges. Rail pressure dropped under load. The fuel filter was packed with rust from an aging steel tank. We cleaned the tank, replaced the in-tank module and strainer, installed ethanol-rated lines, and set a new filter schedule. The coach held pressure on a loaded road test and returned to normal MPG.
Case 2: Diesel pusher with poor power and smoke
The owner reported haze and sluggish climbs. We found air intrusion at the filter head O-ring. Reseal and prime restored rail pressure and cleared the haze. A follow-up fuel sample showed no water.
Case 3: Hot-restart stumble on a gas Class A
After short stops, the engine cranked long and stumbled. The pump current spiked after heat soak and rail pressure fell. A new in-tank module with updated strainer solved the issue. We added reflective sleeve on a warm section of the supply line near the exhaust.
These jobs reflect common Houston patterns: heat, storage, and fuel quality swings. Each fix followed a clear test path and a final road validation.
FAQs (Quick Answers)
How do I know if my fuel pump is failing?
Long cranks, stall on hills, low rail pressure, and a loud tank whine point to pump failure.
Can I drive with a clogged fuel filter?
You can, but you risk stalling in traffic and burning out the pump. Replace it soon.
How often should diesel owners drain the water separator?
Follow chassis guidance; also drain after wet, humid weeks.
What fuel additive schedule works for Houston?
Use detergent cleaner during spring and fall storage shifts. Use stabilizer before long storage.
Why did my MPG drop after storage?
Old fuel, low tire pressure, a dirty air filter, and injector deposits are common reasons. Baseline them first.
