Owning an RV gives you the freedom to travel anywhere with the comforts of home. But when your electrical system fails, that freedom can quickly turn into frustration. From flickering lights to a complete power loss, electrical problems in RVs are common and sometimes dangerous.
At TX RV Repair in Houston, we’ve seen everything from dead batteries to wiring fires in both motorhomes and emergency rigs like ambulances. This guide explains how RV electrical systems work, the most common problems, basic troubleshooting steps, and when to call a professional.
How RV Electrical Systems Work
An RV has two main electrical systems:
- 12-Volt DC System: Runs off your batteries. Powers lights, fans, water pump, and many onboard electronics.
- 120-Volt AC System: Runs when plugged into shore power or a generator. Powers outlets, air conditioning, microwave, and other appliances.
Two key components keep these systems working together:
- Converter: Changes AC power into DC to charge your batteries.
- Inverter: Changes DC battery power into AC to run household appliances.
Modern RVs may also use solar panels as another charging source. Knowing these basics makes it easier to understand why different failures occur.
Common RV Electrical Problems
Electrical problems in RVs usually fall into a handful of categories. Here are the most common issues we diagnose in our Houston repair shop.
Dead or Weak Batteries
- Cause: Old age, undercharging, overcharging, or corrosion on terminals.
- Symptoms: Lights dimming, appliances shutting off, or complete loss of power when off-grid.
- Risk: Without a healthy battery, your RV won’t power 12V systems or start reliably.
Tripped Breakers or Blown Fuses
- Cause: Overloaded circuits from running high-demand appliances at once.
- Symptoms: Loss of power to certain outlets or appliances.
- Risk: Repeated tripping signals an underlying overload or wiring problem.
Wiring Issues
- Cause: Loose connections, corrosion, rodent damage, or vibration while driving.
- Symptoms: Flickering lights, intermittent power, burning smells, or arcs.
- Risk: Damaged wiring is a major fire hazard and requires immediate attention.
Shore Power Problems
- Cause: Damaged shore cord, faulty campground pedestal, or bad grounding.
- Symptoms: No AC power inside the RV even when plugged in.
- Risk: Faulty shore connections can damage onboard electronics.
Converter or Inverter Failure
- Cause: Internal component failure, surges, or overheating.
- Symptoms: Batteries not charging, AC appliances not working off battery power.
- Risk: Can disable either your 12V or 120V system entirely.
Short Circuits
- Cause: Exposed or damaged wiring, moisture intrusion, defective parts.
- Symptoms: Blown fuses, sparks, or sudden power loss.
- Risk: Extremely dangerous—shorts can cause fires.
Overloaded Circuits
- Cause: Exceeding the RV’s amperage capacity (30 or 50 amps).
- Symptoms: Frequent breaker trips, overheated cords.
- Risk: Can permanently damage appliances and wiring.
Generator Issues
- Cause: Low fuel, bad starter, faulty voltage regulator, or worn parts.
- Symptoms: Won’t start, inconsistent power, or unusual noises.
- Risk: A failed generator leaves you without backup power.
Solar System Failures
- Cause: Faulty charge controller, wiring problems, or panel degradation.
- Symptoms: Batteries not charging properly.
- Risk: Limited power when off-grid, especially during long trips.
Appliance Failures
- Cause: Sometimes the problem is the appliance itself.
- Symptoms: One appliance not working while others are fine.
- Risk: Misdiagnosis can waste time troubleshooting wiring instead of replacing the faulty device.
Signs of Electrical Problems in an RV
Watch for these warning signs:
- Flickering or dimming lights.
- Burning smells from outlets, panels, or appliances.
- Intermittent power in outlets or appliances.
- Rotten-egg smell from batteries (sulfur fumes).
- Noises from inverter, converter, or generator.
- Sudden total or partial loss of power.
These symptoms mean you should stop using the affected system until the cause is found.

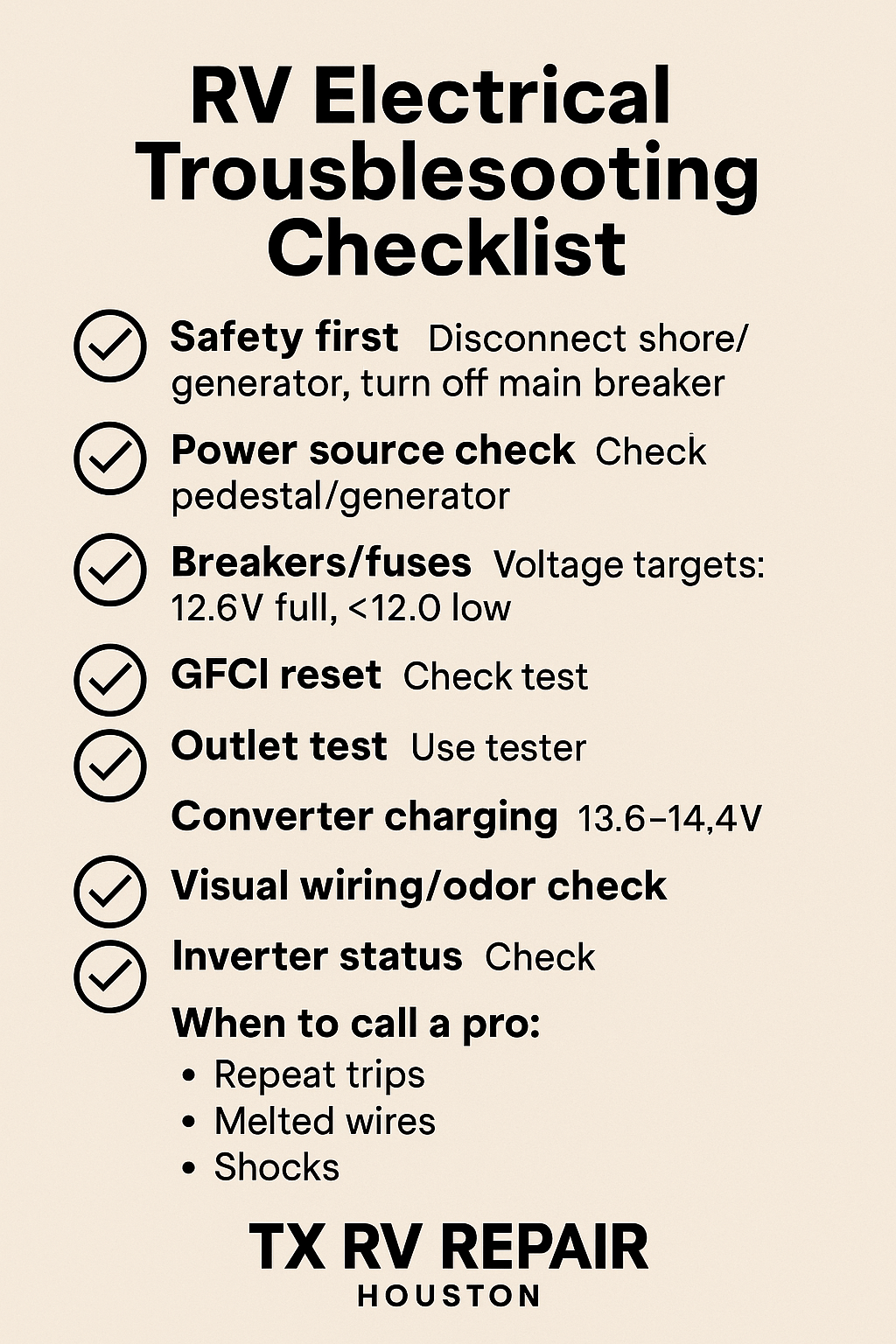

Basic Troubleshooting Steps
Some issues have simple fixes you can check before calling a technician.
- Check the Power Source – Verify the campground pedestal is active or your generator is fueled and running.
- Inspect Breakers and Fuses – Reset tripped breakers or replace blown fuses.
- Examine Batteries – Ensure terminals are clean and tight; test voltage with a multimeter.
- Test Outlets – Use a small appliance or outlet tester to confirm power.
- Reset GFCI Outlets – Many RV outlets are protected by GFCI; push the reset button.
- Use a Multimeter – Test for voltage at the battery, converter, and outlets.
Safety Note: If you see sparks, melted wiring, or smell burning plastic, stop and call a professional immediately.
When to Call a Professional
Some problems require expert tools and training. Call a certified RV repair shop if you have:
- Breakers that keep tripping or fuses that blow repeatedly.
- Melted, scorched, or frayed wiring.
- A converter or inverter that fails repeatedly.
- A generator that runs poorly or not at all.
- Electrical shocks from outlets or switches.
- Uncertainty about how to safely test or repair.
At TX RV Repair, our technicians use diagnostic equipment to safely identify hidden issues and prevent further damage.
Preventing Electrical Problems
You can reduce electrical problems in your RV with regular maintenance:
- Replace batteries on schedule and keep terminals clean.
- Use surge protectors when plugging into campground pedestals.
- Inspect cords and wiring for wear before each trip.
- Keep rodents out of storage areas.
- Avoid running multiple high-wattage appliances at once.
- Schedule a professional inspection at least once a year.
These habits help prevent costly repairs and keep your RV safe on the road.
TX RV Repair: Houston’s Electrical Specialists
At TX RV Repair, we know electrical problems can ruin a trip or put you in danger. Our shop is trusted not only by RV owners but also by operators of emergency rigs like ambulances, where reliable power can be life-saving.
We’ve repaired everything from dead batteries before a cross-country trip to wiring shorts that nearly caused fires. Our Houston team combines hands-on RV experience with advanced diagnostic tools to get you back on the road quickly and safely.
If you notice signs of electrical trouble, don’t wait. Schedule service with TX RV Repair and travel with confidence.
Power Up Your Next Adventure
Electrical systems are the lifeline of your RV. Whether it’s powering your fridge, charging your devices, or keeping the AC running in Houston’s heat, reliable electricity is non-negotiable. By recognizing common problems, trying safe troubleshooting steps, and knowing when to call for help, you protect both your RV and your family.
If your RV shows signs of electrical trouble, contact TX RV Repair in Houston today. We’ll make sure your RV is road-ready, so your next adventure isn’t cut short by a blown fuse or a dead battery.
